QN1530 Nesting CNC Router with Gantry Labeler

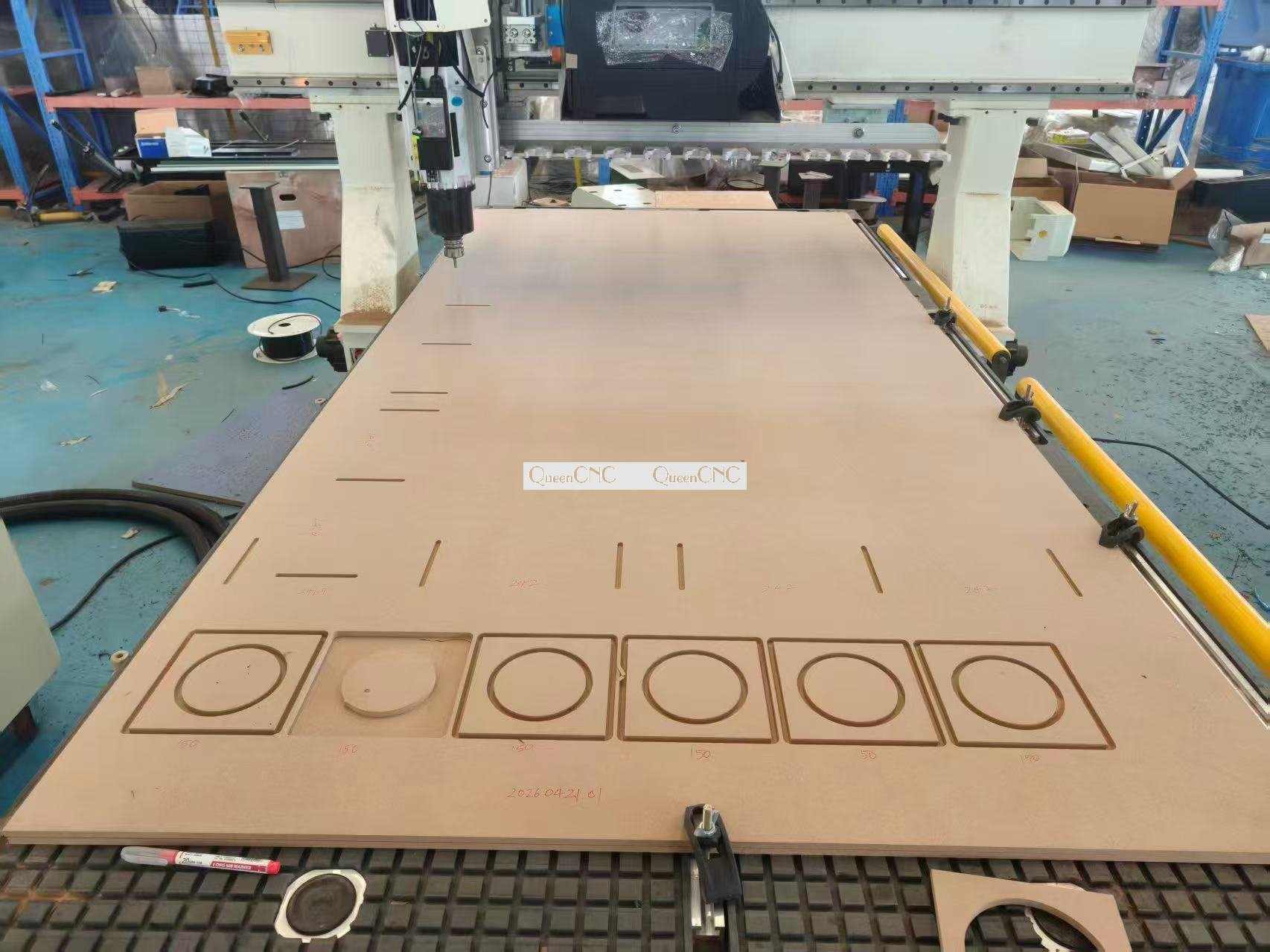

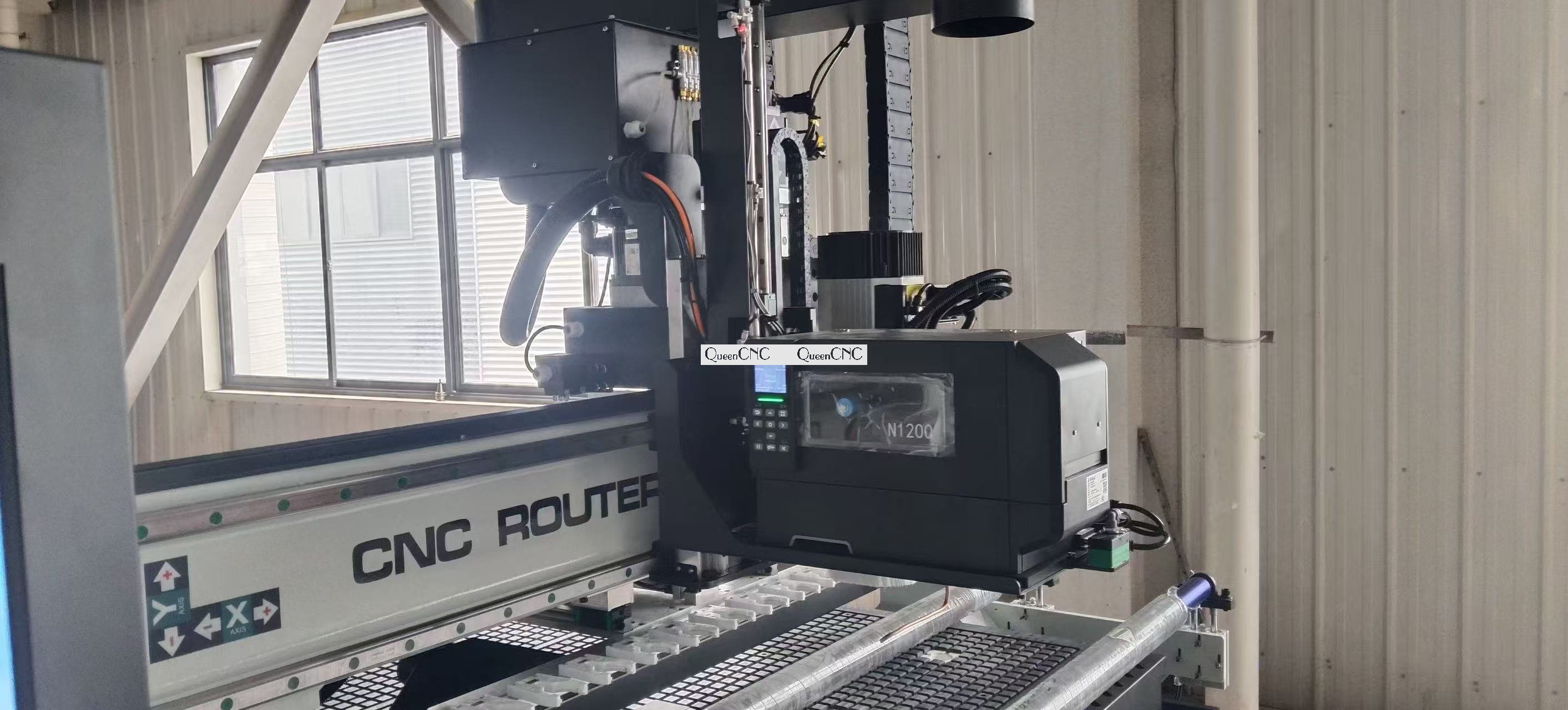

CNC router machine pics:


Labeller cnc router working video:
https://youtube.com/shorts/zes28P89uzs?si=Q3I94IzDQTXUC5R9
What is the advanatges of cnc router with gantry labeller?
•  Automatic labelling directly on the gantry saves labor and improves efficiency
• Accurate label positioning reduces production mistakes
• Seamless integration of cutting and labelling in one process
• Faster panel identification for drilling, edging and assembly
• Ideal for customized furniture and cabinet production
• Improves workflow automation and factory productivity
• Reduces manual handling and operator errors
• Compatible with barcode and QR code management systems

Techinical specs of labeller cnc router:

CNC Router with Gantry Labeller

Item Specification
Working Size 1500 × 3000 mm
Table Structure Vacuum Table
Spindle Power 9.0 kW ATC Air Cooling Spindle
Spindle Speed 0–24000 rpm
Tool Changer Linear / Carousel Automatic Tool Changer
Labelling System Gantry Automatic Labeler
Label Accuracy ±0.2 mm
Drive System Servo Motor and Driver
Transmission Helical Rack & Pinion
Guide Rail Taiwan Linear Guide Rails
Working Speed 0–25 m/min
Control System Syntec / Weihong Control System/LNC
Vacuum Pump 7.5 kW Water Circulating Pump
Dust Collector Double Bag Dust Collector
Lubrication Automatic Lubrication System
Positioning Accuracy ±0.05 mm
Repeat Positioning Accuracy ±0.03 mm
Voltage 380V / 3 Phase / 50Hz (Customizable)
Applicable Materials MDF, plywood, particle board, solid wood, PVC, acrylic
Application Customized furniture, cabinets, wardrobes, panel furniture production
 Widely Applications of this cnc router machine:

• Kitchen cabinet panels
• Wardrobe and closet panels
• Customized furniture components
• MDF cutting and nesting boards
• Office furniture production
• Wooden doors and decorative panels
• Shelves and cabinet body parts
• Barcode and QR code labelled panels
• Particle board and plywood machining
• Mass production panel furniture projects

Any doubts? Donot hesitate to contact with me freely to get more info!
